Product
Y70 Touch
The most premium case in its category, and one of its best sellers.
Modern Aesthetic Case · Touch October 2023, Y70 February 2024 · $359.99 Touch, $219.99 Y70 · Shipped
Title
Product Director
Responsibilities
- Design
- Software
- Engineering
- Product
- Copy
- Go-to-market
Achievements
- 300K+
- units sold
- 5/5
- TechRadar
“a stunning, three-panel panoramic showroom centerpiece” MP1st
01The brief
The insight
Y60 owners were modding LCD screens into their cases. A built-in screen had to be interactive to be useful.
The hard call
The launch screens: 20,000 dead-stock ASUS 4K laptop panels, bought to last two years. They sold out in the first week.
02What I did
What I made
- Rough CAD, refined with the design team
- Larger vents
- A grommet redesigned as a showpiece that wraps the motherboard
- Perspective lines radiating from the CPU cutout
- Drive cages that put the H-circle logo in the cutout
- A raise-or-lower top fan mount
- No parts shared with the Y60
What I led
- Founded HYTE’s software team
- Electrical and software engineering for the touchscreen
- Direction, development, QA and go-to-market
03In my words
Y60 owners started modding non-touch LCD screens into their cases. If we were going to make that a product, it had to be interactive to be useful, and that meant building a software layer. So I founded our software team and led the electrical and software engineering that made the touchscreen viable. That layer became HYTE Nexus.
Expanding PC engagement beyond the build process.
Launch, October 2023
Before the Y70 we made the Y40, a more affordable way into the Y series. That project matured the design, function and experience far beyond the Y60, and we carried those lessons into the Y70. Not a single part is shared with the Y60. I wanted the empty case, which is how you see it when you're shopping, to look amazing: larger vents, a grommet redesigned as a showpiece that wraps around the motherboard, perspective lines radiating out from the CPU cutout, drive cages placed so our H-circle logo sits in the cutout, and a cutout edge shaped like the nucleus of the case. A mechanism up top raises or lowers the fan mount, so you can show the fans or hide them. We defined the limits of refinement on a PC case.
For the first screens we found dead stock: 4K touch panels made for a high-end ASUS laptop. We bought 20,000, expecting them to last two years as our halo SKU. They sold out in the first week. The touch version outsold the non-touch Y70, even as the most expensive case on the market, and we went on to sell more than 300,000. NVIDIA, AMD and Intel used it in keynotes, ads and media because it was the most refined stage their high-end parts could stand on.
Add a new dimension to your Y70 with touch.
CES 2025

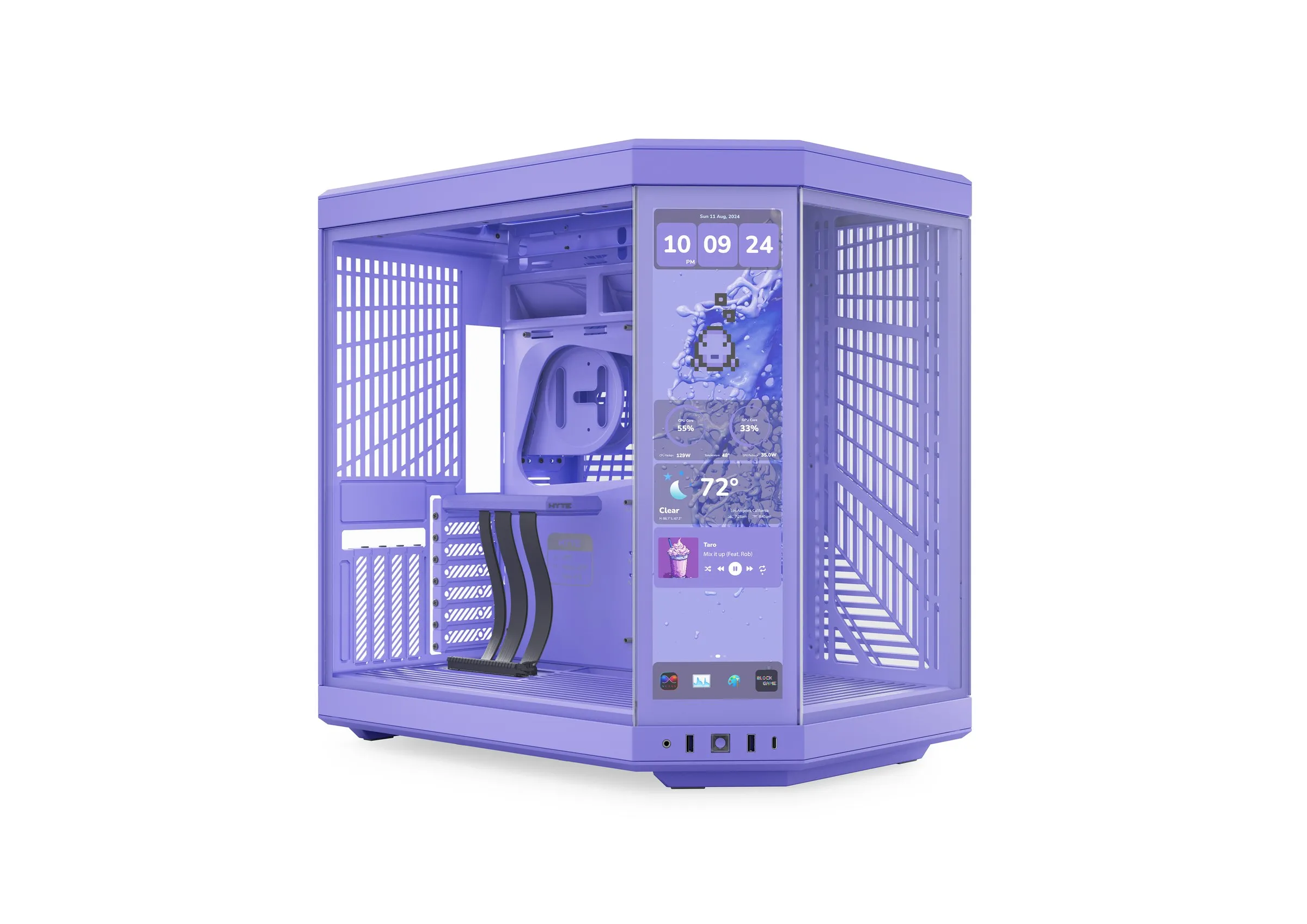

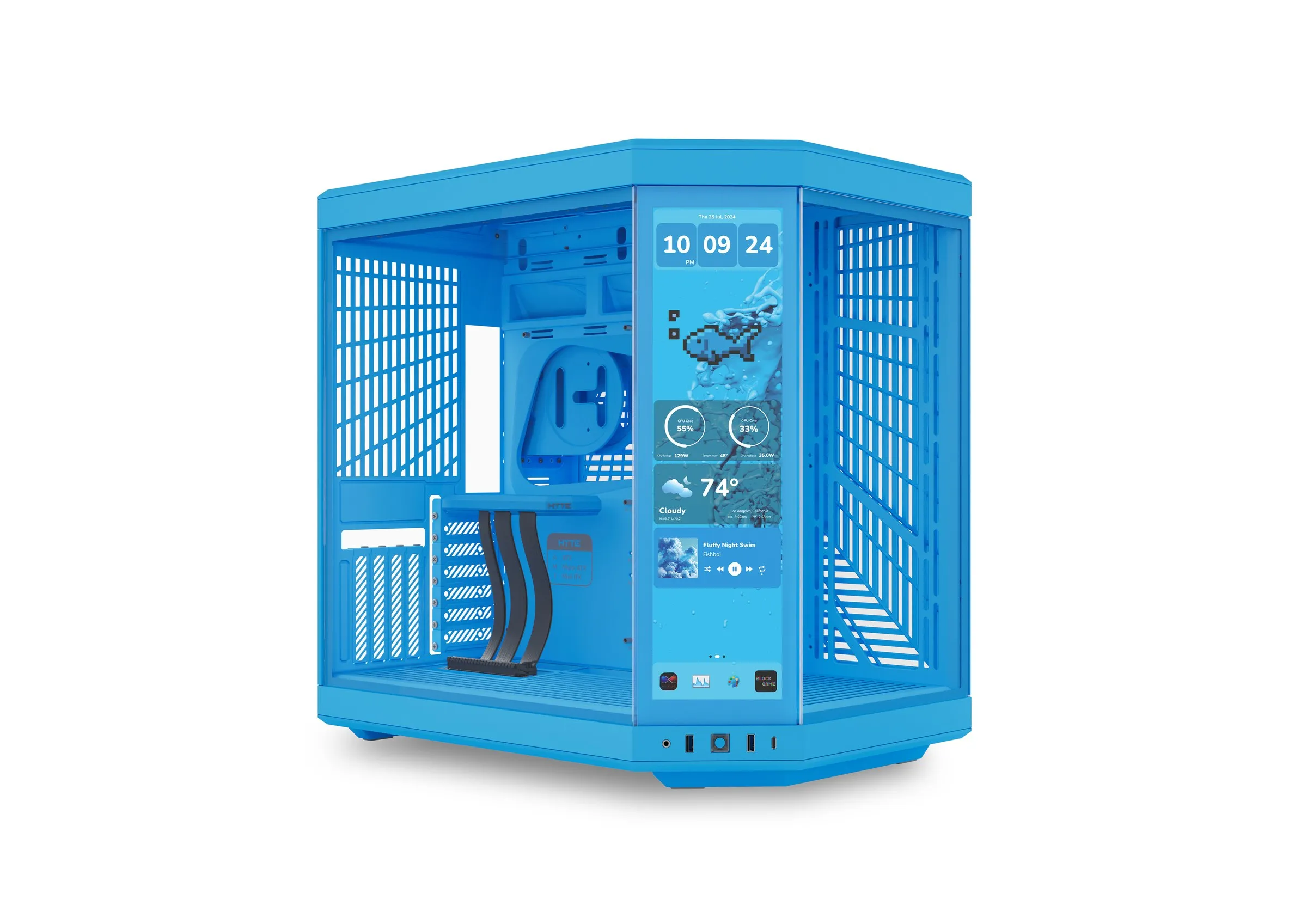

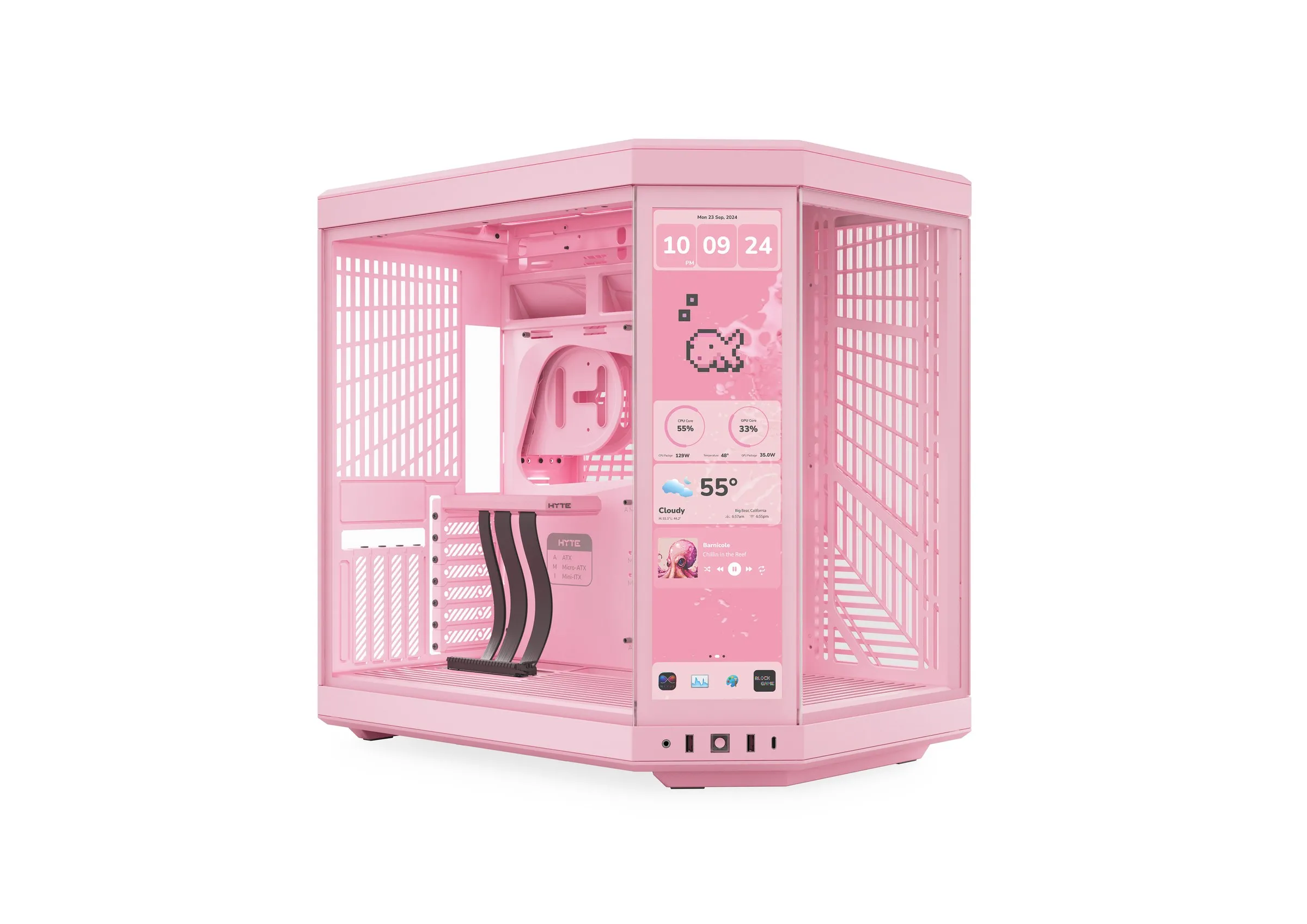

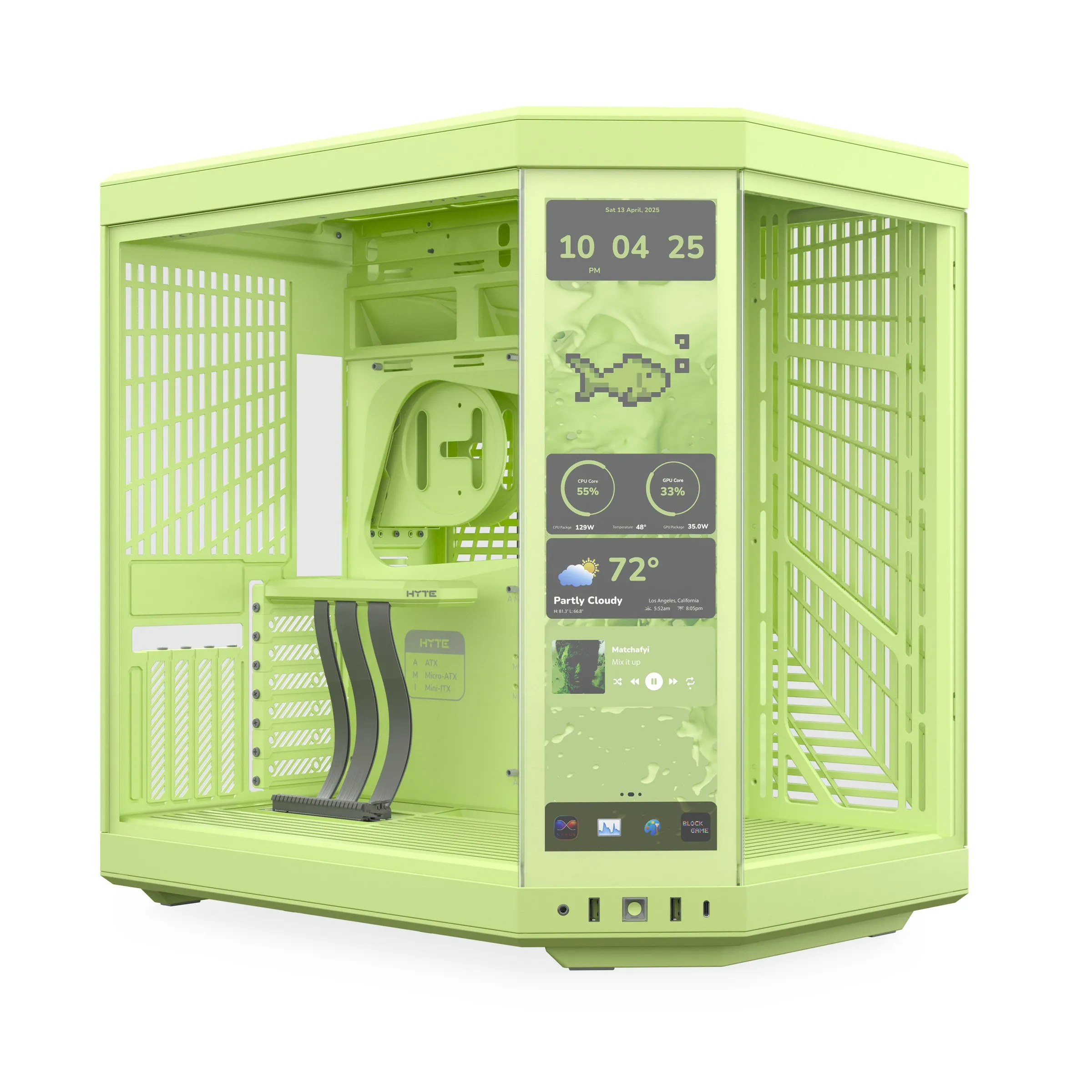

The Y70 also crossed over to people who had never owned a gaming PC. It looked more like home furniture than a scary technical computer. Coming out of COVID, women and teenagers were building incredible PCs in it and theming them to their rooms as a total expression of self. Our strawberry milk, taro milk and blueberry milk colorways exploded, and we became THE pink and purple case.
04Achievements
- units sold
- 300K+
- The touch version outsold the non-touch Y70 as the most expensive case on the market
- Used by NVIDIA, AMD and Intel in keynotes, ads and media
-
TechRadar
“possibly the best off-the-shelf mid-tower PC case you can buy”
-
MP1st · Y70 Touch Infinite
“a stunning, three-panel panoramic showroom centerpiece”
-
PCMag · Y70 Touch InfiniteEditors’ Choice
“The screen continues to be the star of this show.”
-
FunkyKit · Y70Editor’s Choice
“it’s probably one of the best looking chassis I’ve looked at so far”
-
PCGamesN
“A snazzy case made even more so by its beautiful, customisable 4K touch screen.”
-
Modders-Inc · Y70Must Have
“it’s an easy recommendation for anyone planning a showpiece build”
-
GameRevolution · Touch Infinite, Gundam edition
“Touchscreen display is more than just a gimmick.”
-
Tom’s Hardware
“the stunning 4K touchscreen really is the showpiece here”
-
KitGuru
“without doubt the best LCD screen I have seen on a case so far”
-
CGMagazine · Y70
“a beautiful blend of style and substance that will impress any enthusiast builder”
-
TechPowerUpHighly Recommended · Innovation
“a gorgeous, capable display”
-
TechPowerUp · Y70Highly Recommended
“refreshing confidence to try new things while compromising as little as possible”
-
Overclock3DTTL Approved
“The Hyte Y70 Touch is a fantastic enclosure”
-
Game Rant · Y70 Touch Infinite
“one of the best cases we’ve ever tested”
05Film
06Reference
Product pageThe copy I wrote for hyte.com
Enhanced In Every Dimension
- Y70 is an upgraded dual chamber ATX mid tower modern aesthetic case that delivers next gen gaming experiences with massive 4 slot vertical graphics and unlocks maximum performance via ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen.
Product Features
- Mesmerizing 14.9" Integrated IPS Touchscreen
- At a 682 x 2560 (2.5K) resolution and 60Hz refresh rate, this capacitive IPS touchscreen delivers an insanely crisp and buttery smooth visual experience with 10-point multi-touch capability, unlocking a magnitude of possibilities and extensive screen customization powered by HYTE Nexus software. Our bigger, brighter, 3rd generation panel features a larger 14.9" display with a 43% higher brightness for a more immersive user experience. All in a single package integrated into the case chassis structure, pioneering meaningful digital interaction with the best display ever in a case.
- Massive 4 Slot Vertical Graphics
- Y70 grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.
- Included Luxury PCIE 4.0 Riser Cable
- Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.
- Ginormous Cooling Capacity
- A spacious interior makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick up above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible.
- Unified Modern Aesthetic
- With 4 unique colorways, Y70 puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.
Tech specs35 specs
Specs Summary
- Type
- Dual Chamber Mid-Tower ATX Case
- Exterior Dimensions
- 470 x 320 x 470 mm
- Volume (L)
- 70.7
- Motherboard Sizes
- ITX, mATX, ATX, EATX
- Expansion Slots
- 7 half + 4 full height
- Riser Cable Included
- Yes, PCIE 4.0 x 16
- I/O
- 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack
- Dust Filters
- Top, Side, Bottom
- Top Fans
- 3x 120 mm / 2x 140 mm
- Type
- Dual Chamber Mid-Tower ATX Case
- Exterior Dimensions
- 470 x 320 x 470 mm
- Volume (L)
- 70.7
- Motherboard Sizes
- ITX, mATX, ATX, EATX
- Expansion Slots
- 7 half + 4 full height
- Riser Cable Included
- Yes, PCIE 4.0 x 16
- I/O
- 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack
- Dust Filters
- Top, Side, Bottom
- Top Fans
- 3x 120 mm / 2x 140 mm
- Top Radiator
- 120-360, 140-280 @ 68 mm thick
- Rear Fans
- 1x 120/140 mm
- Rear Radiator
- 1x 120/140 mm
- Side Fans
- 3x 120 mm / 2x 140 mm
- Side Radiator
- 120-360, 140-280 @ 125 mm thick
- Bottom Fans
- 3x 120 mm / 2x 140 mm @ 32 mm thick
- Max Video Card Length
- 422 mm
- Max Video Card Thickness
- 105 mm
- Max CPU Cooler Height
- 180 mm
- Max PSU Length
- 235 mm
- Storage
- 2x 3.5" HDD or 4x 2.5" SSD
- Warranty
- 4 Years
- SKU (Touch)
- CS-HYTE-Y70TTI-WW / CS-HYTE-Y70TTI-WB / CS-HYTE-Y70TTI-BB / CS-HYTE-Y70TTI-RB
Tech Specs for Touch Screen
- Panel Technology
- IPS
- Screen Size (Diagonal)
- 14.9 inches
- Resolution
- 682 x 2560 (2.5K)
- Pixels Per Inch
- 178
- Dot Pitch
- 0.007 mm
- Brightness
- 500 nits
- Contrast Ratio
- 1000:1
- Viewing Angle
- 80 degrees
- Refresh Rate
- 60 Hz
- Pixel Response Time
- 30 ms
- Touch Input
- Yes, 10-Point Multi-Touch
- Input Connections
- USB 2.0 Header, SATA Power, DisplayPort
- Nexus Powered
- Yes, Nexus Touch
Press releaseOctober 24, 2023
October 24, 2023
HYTE Releases the Latest Addition to its Y-Series of Cases, the New Y70 Touch
LOS ANGELES, CALIF., OCT. 24, 2023 - HYTE, a leading manufacturer of cutting-edge PC components and peripherals, is excited to release the new Y70 Touch, the latest addition to its signature Y-Series cases featuring a vibrant 14.1” 1100 x 3840 capacitive touchscreen integrated into the corner panel.
“The dedicated touchscreen is an engaging instrument to reach the digital plane of your physical machine, creating a more comfortable personal computing experience,” said Rob Teller, Product Director of HYTE. “With obsessive improvements in cooling, capacity, and design, the Y70 Touch is the modern aesthetic case.”
Integrated Touchscreen
A larger rendition of HYTE’s viral Y60, Y70 Touch takes interactivity and immersion in a PC case to new lengths. Its 10-point multi-touchscreen with 283 pixels per inch comes pre-installed and provides an incredibly crisp and smooth visual experience allowing users to continuously engage with the PC long after the build process is complete.
Customization of the Y70 Touch is made possible via HYTE Nexus Touch. With a plethora of exciting widgets for a personal digital experience, users can monitor system performance, engage with Twitch chat, play games, display Google calendar, the weather, and time, quickly write notes and more, all from the corner of the Y70 Touch.
Ginormous Cooling Capacity
The iconic HYTE Y-series ventilation pattern continues with the Y70 Touch and has been optimized with lower impedance for increased airflow and cooling capacity. Up to a 360mm radiator can be mounted to the side and the adjustable top bracket of the case, while up to a 180mm air cooler can be mounted comfortably within the Y70 Touch. To further increase airflow, users can mount up to three 120mm fans in the Y70 Touch basement to provide a direct stream of cooling to the graphics card (GPU).
Unified Modern Aesthetic

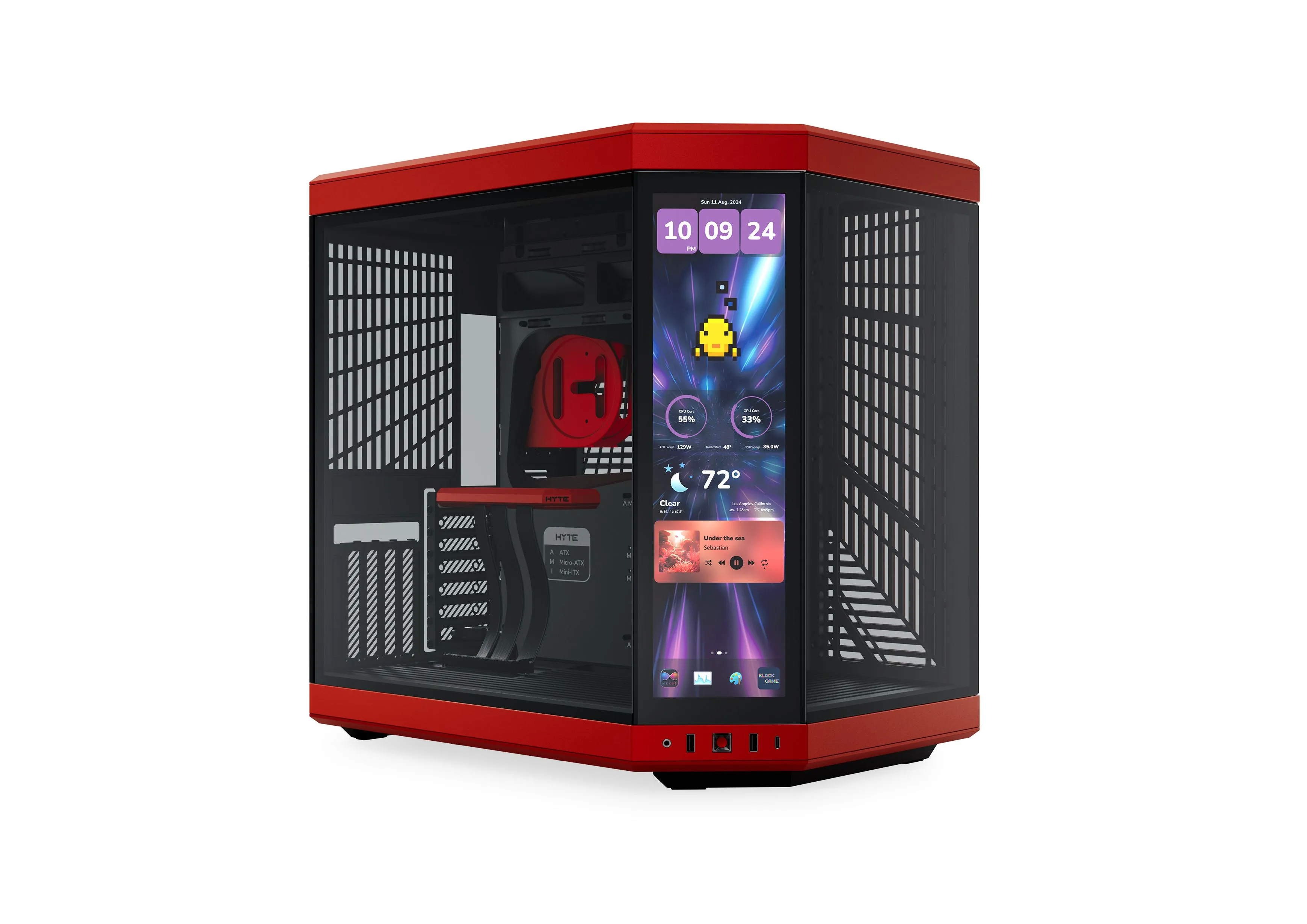

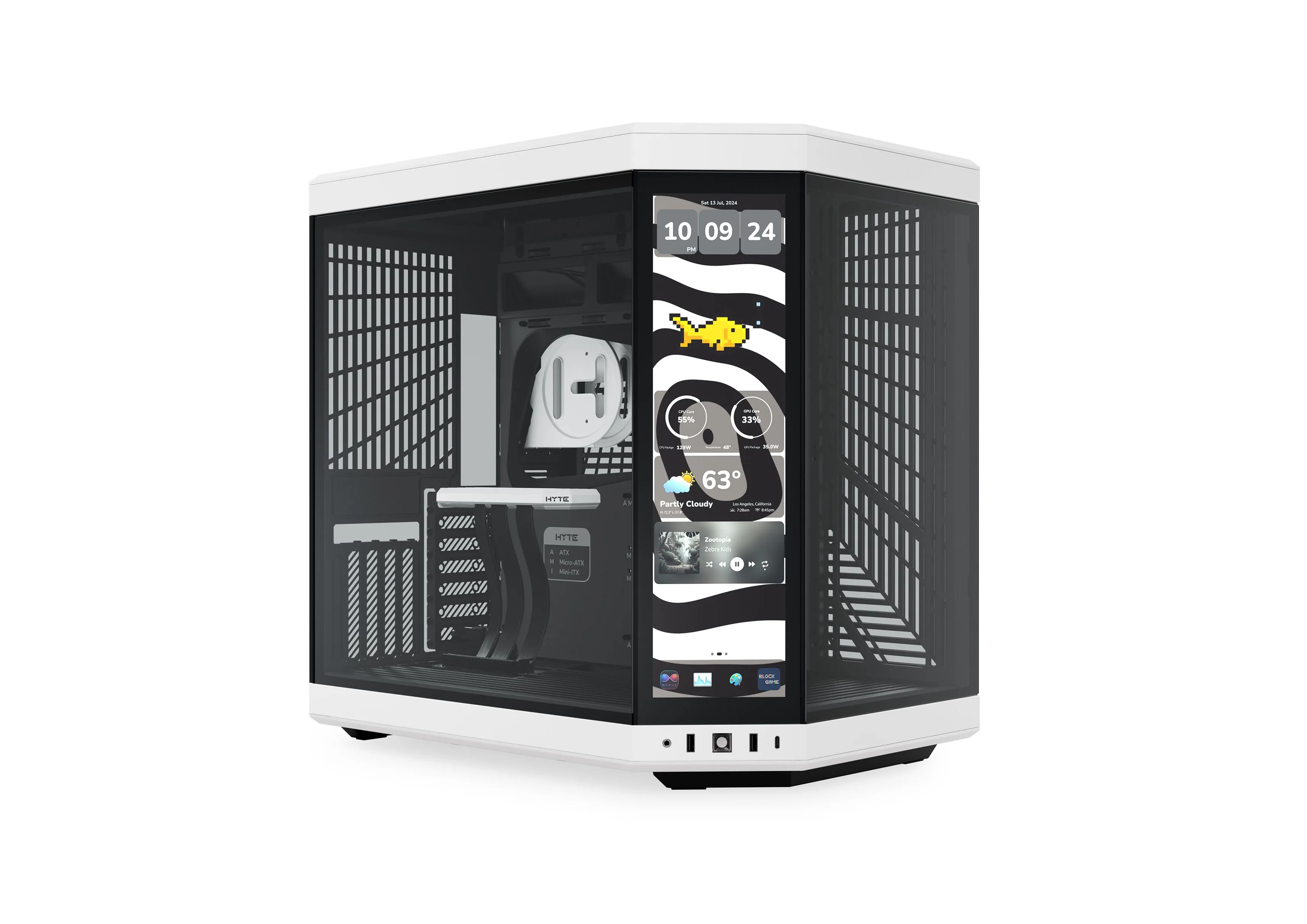

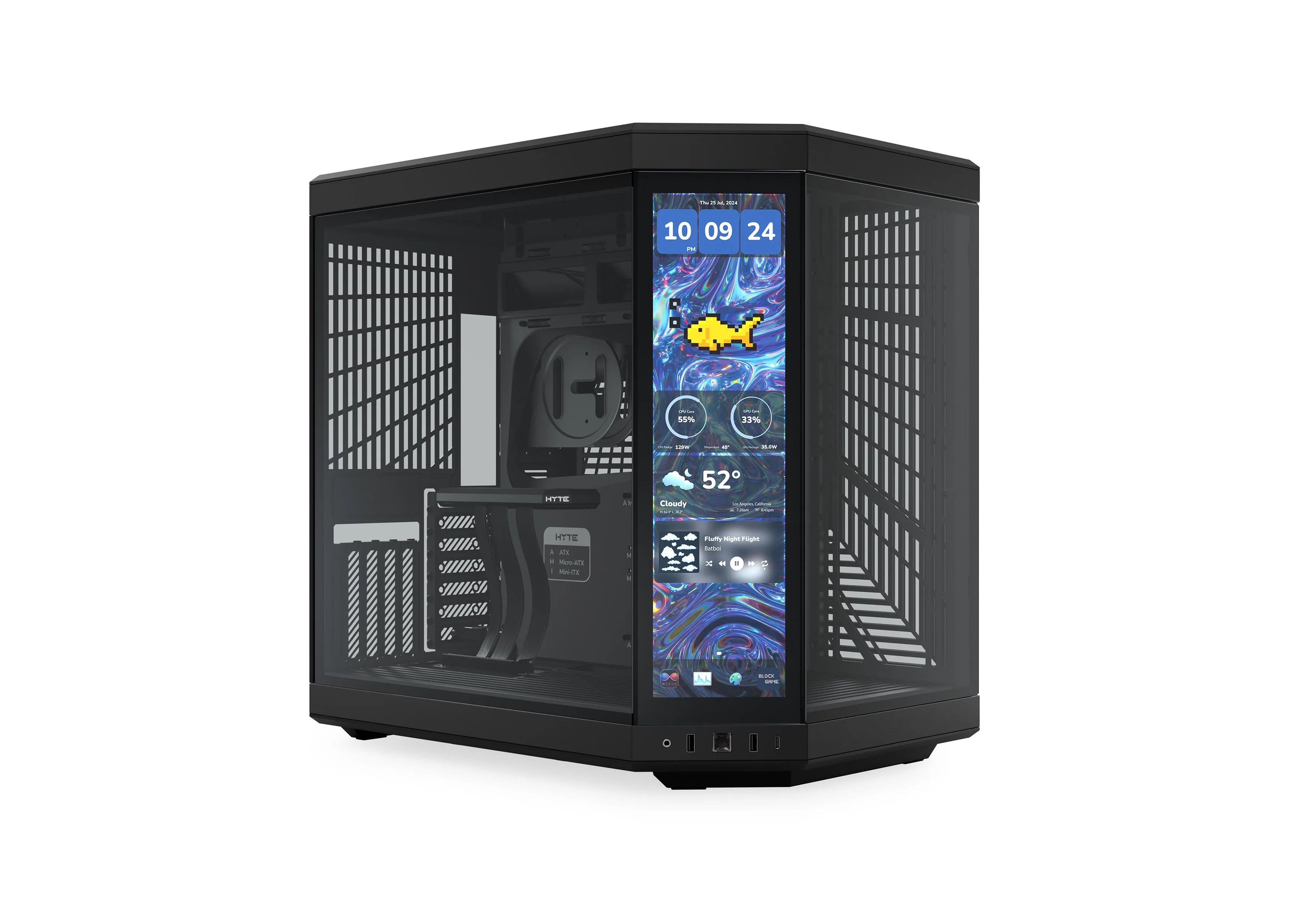

Y70 Touch is available in four color combinations, including: Snow White (white/white), white/black, red/black, and black. The included PCIe 4.0 riser cable with a color matched canopy, for uninterrupted visual flow, enables exclusive vertical GPU mounting of up to a four-slot card to accommodate the largest and most powerful cards. For additional hardware support, seven half-height horizontal PCIe slots are available behind the GPU.
Y70 Touch takes on a dual chamber interior layout to create the optimal component showcase in the front and provides ample space in the rear for easy cable management. The tool-less top and side panels of the Y70 Touch make upgrades and maintenance easy and enable users to create a hybrid, open frame design, with the removal of the glass panels. Seamless L-shaped molded rubber grommets have been integrated around the motherboard tray, virtually disappearing into the case, for a cohesive look while reusable Velcro straps, meticulously placed routing channels, and tie down points ensure the rear of the case looks as beautiful as the front.
Pricing & Availability
The Y70 Touch is available for purchase, immediately, within the United States and Canada from HYTE.com for a starting MSRP of $359.99 USD and is expected to be available for purchase globally in December. Pricing may vary per region.
